Web scraping

Lecture 8

Dr. Greg Chism

University of Arizona
INFO 511 - Fall 2024

Setup

import requests
from bs4 import BeautifulSoup
import pandas as pd
import nltk
from nltk.corpus import stopwords
from nltk.tokenize import word_tokenize
from afinn import Afinn
import matplotlib.pyplot as plt
import seaborn as sns
from collections import Counter
import numpy as np
import ssl
try:
    _create_unverified_https_context = ssl._create_unverified_context
except AttributeError:
    pass
else:
    ssl._create_default_https_context = _create_unverified_https_context

nltk.download('stopwords')
nltk.download('punkt')
nltk.download('punkt_tab')

sns.set_style("whitegrid")

Before continuing…

If you haven’t yet done so: Install a Chrome browser and the SelectorGadget extension:
- Chrome
- SelectorGadget
Go to your ae repo, commit any remaining changes, push, and then pull for today’s application exercise.

Reading The Arizona Daily Wildcat

How often do you read The Arizona Daily Wildcat?

Every day
3-5 times a week
Once a week
Rarely

Reading The Arizona Daily Wildcat

What do you think is the most common word in the titles of The Arizona Daily Wildcat opinion pieces?

Analyzing The Arizona Daily Wildcat

Analyzing The Arizona Daily Wildcat

All of this analysis is done in Python!

(mostly) with tools you already know!

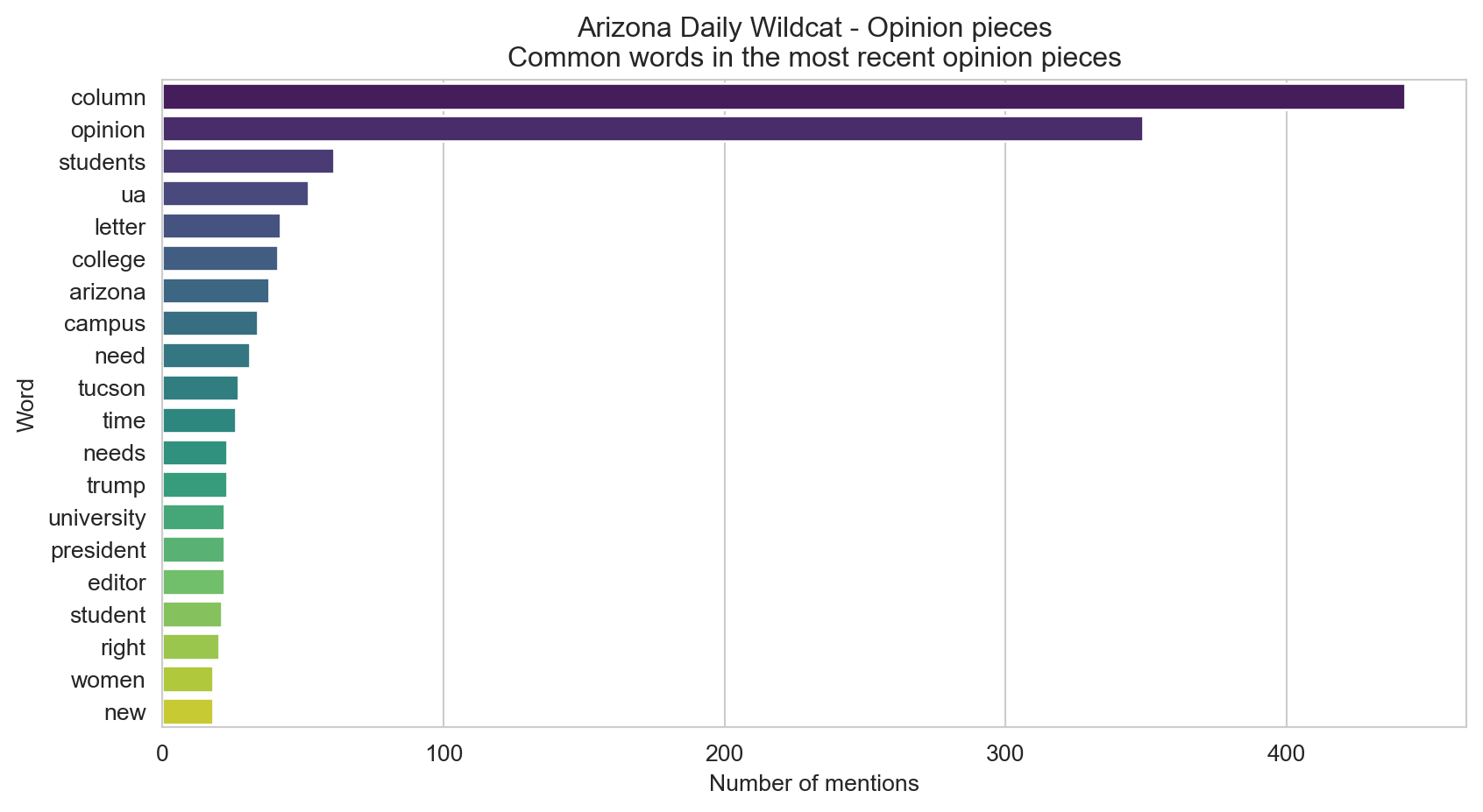

Common works in The Arizona Daily Wildcat titles

Code for the earlier plot:

stop_words = set(stopwords.words('english'))
wildcat['tokens'] = wildcat['title'].apply(lambda x: [word.lower() for word in word_tokenize(x) if word.isalpha() and word.lower() not in stop_words])

word_counts = Counter(word for title in wildcat['tokens'] for word in title)
common_words = pd.DataFrame(word_counts.most_common(20), columns=['word', 'count'])

plt.figure(figsize=(10, 5))
sns.barplot(x='count', y='word', data=common_words, palette='viridis')
plt.xlabel('Number of mentions')
plt.ylabel('Word')
plt.title('Arizona Daily Wildcat - Opinion pieces\nCommon words in the most recent opinion pieces')
plt.show()

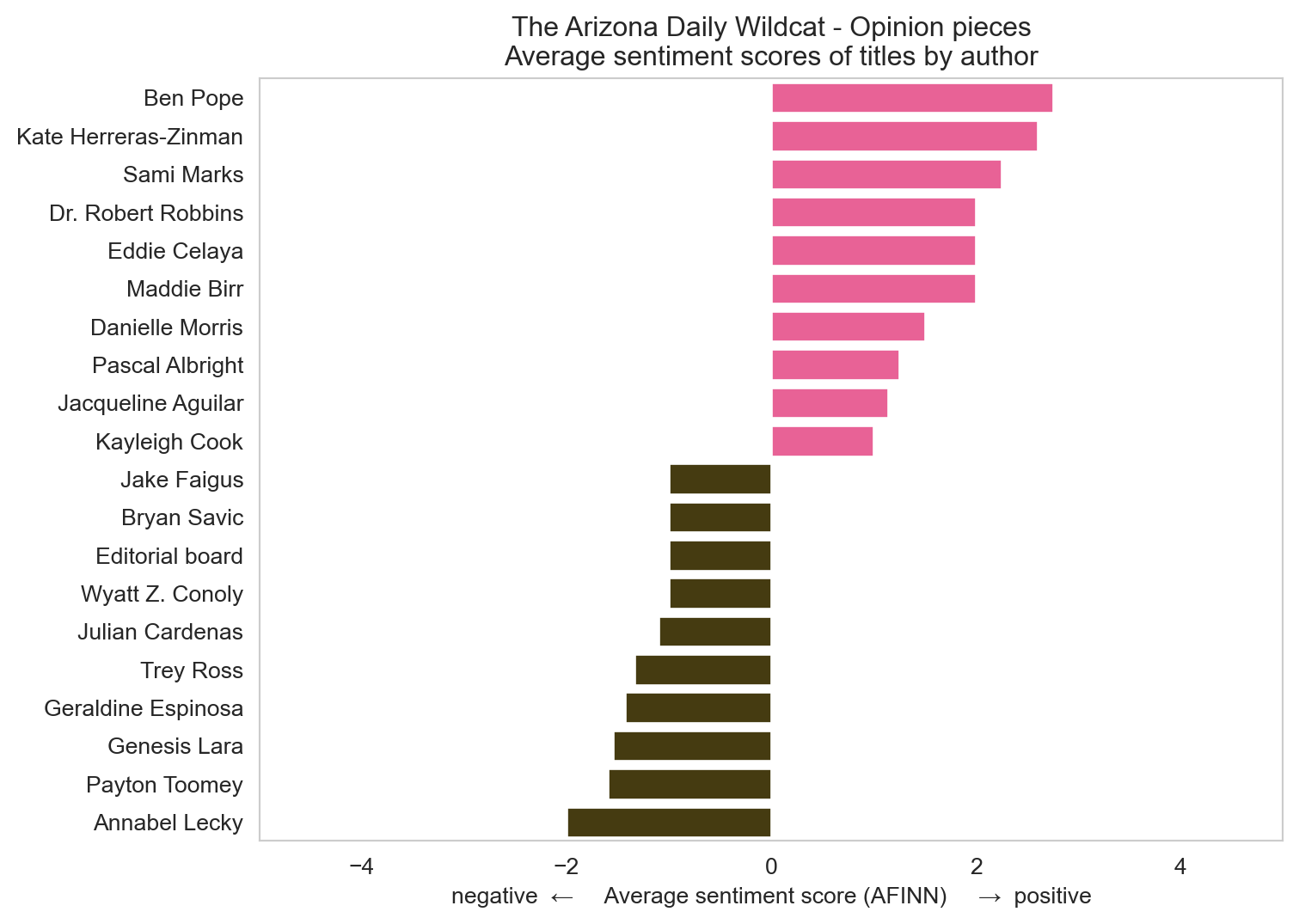

Avg sentiment scores of titles

Code for the earlier plot:

stop_words = set(stopwords.words('english'))
wildcat['tokens'] = wildcat['title'].apply(lambda x: [word.lower() for word in word_tokenize(x) if word.isalpha() and word.lower() not in stop_words])

afinn = Afinn()

wildcat['sentiment'] = wildcat['title'].apply(lambda x: afinn.score(x))
author_sentiment = wildcat.groupby(['author', 'title'])['sentiment'].sum().reset_index()

author_summary = author_sentiment.groupby('author').agg(n_articles=('title', 'count'), avg_sentiment=('sentiment', 'mean')).reset_index()
author_summary = author_summary[(author_summary['n_articles'] > 1) & (author_summary['author'].notna())]

top_positive = author_summary.nlargest(10, 'avg_sentiment')
top_negative = author_summary.nsmallest(10, 'avg_sentiment')
top_authors = pd.concat([top_positive, top_negative])

top_authors['neg_pos'] = np.where(top_authors['avg_sentiment'] < 0, 'neg', 'pos')
top_authors['label_position'] = np.where(top_authors['neg_pos'] == 'neg', 0.25, -0.25)
top_authors = top_authors.sort_values(by='avg_sentiment', ascending=True)

plt.figure(figsize=(8, 6))
sns.barplot(x='avg_sentiment', y='author', data=top_authors, hue='neg_pos', dodge=False, palette={'neg': '#4d4009', 'pos': '#FF4B91'})
plt.xlabel('negative  ←     Average sentiment score (AFINN)     →  positive')
plt.ylabel(None)
plt.title('The Arizona Daily Wildcat - Opinion pieces\nAverage sentiment scores of titles by author')
plt.legend([], [], frameon=False)
plt.xlim(-5, 5)
plt.grid(False)
plt.gca().invert_yaxis()
plt.show()

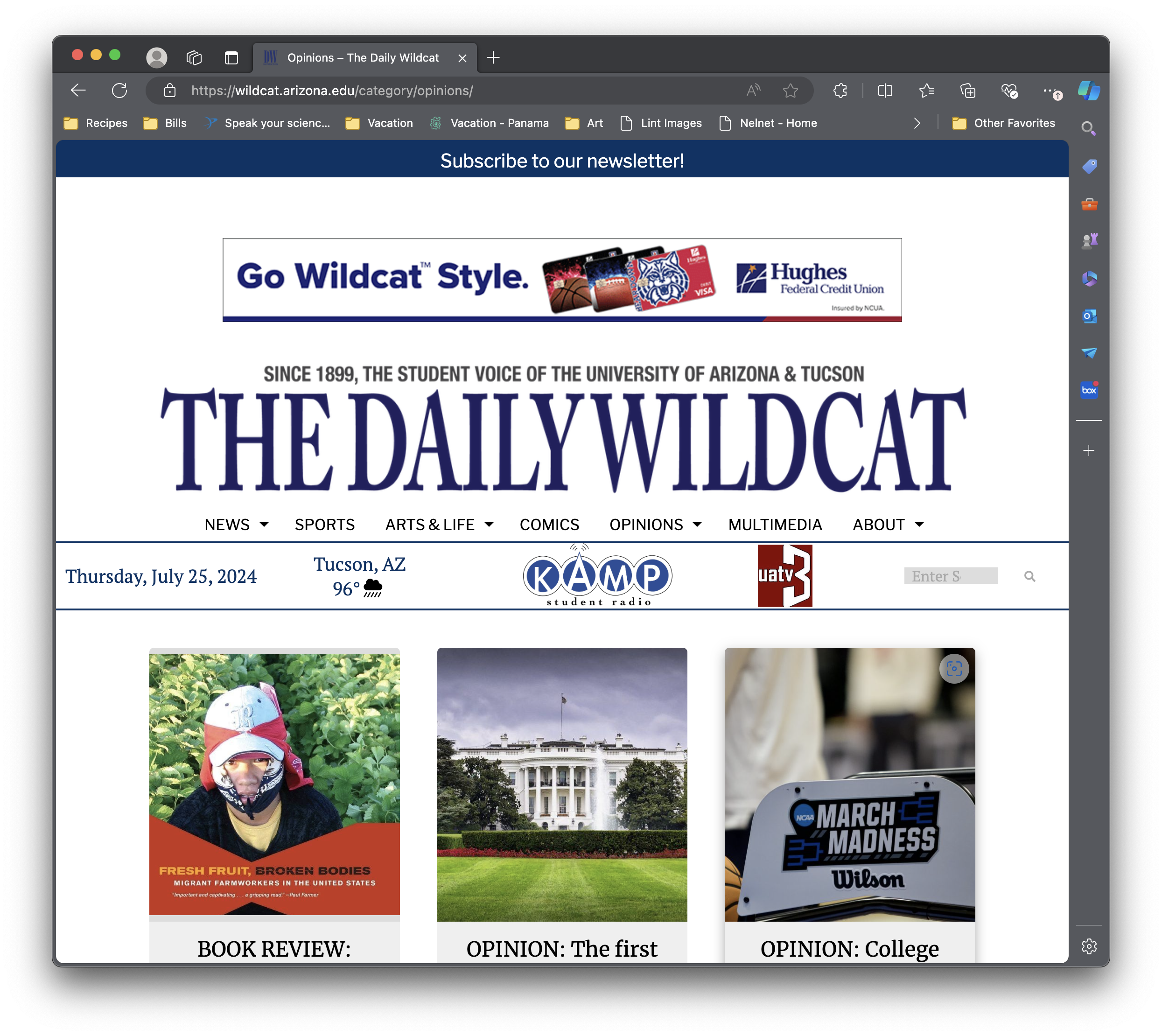

Where is this data coming from?

https://wildcat.arizona.edu/category/opinions/

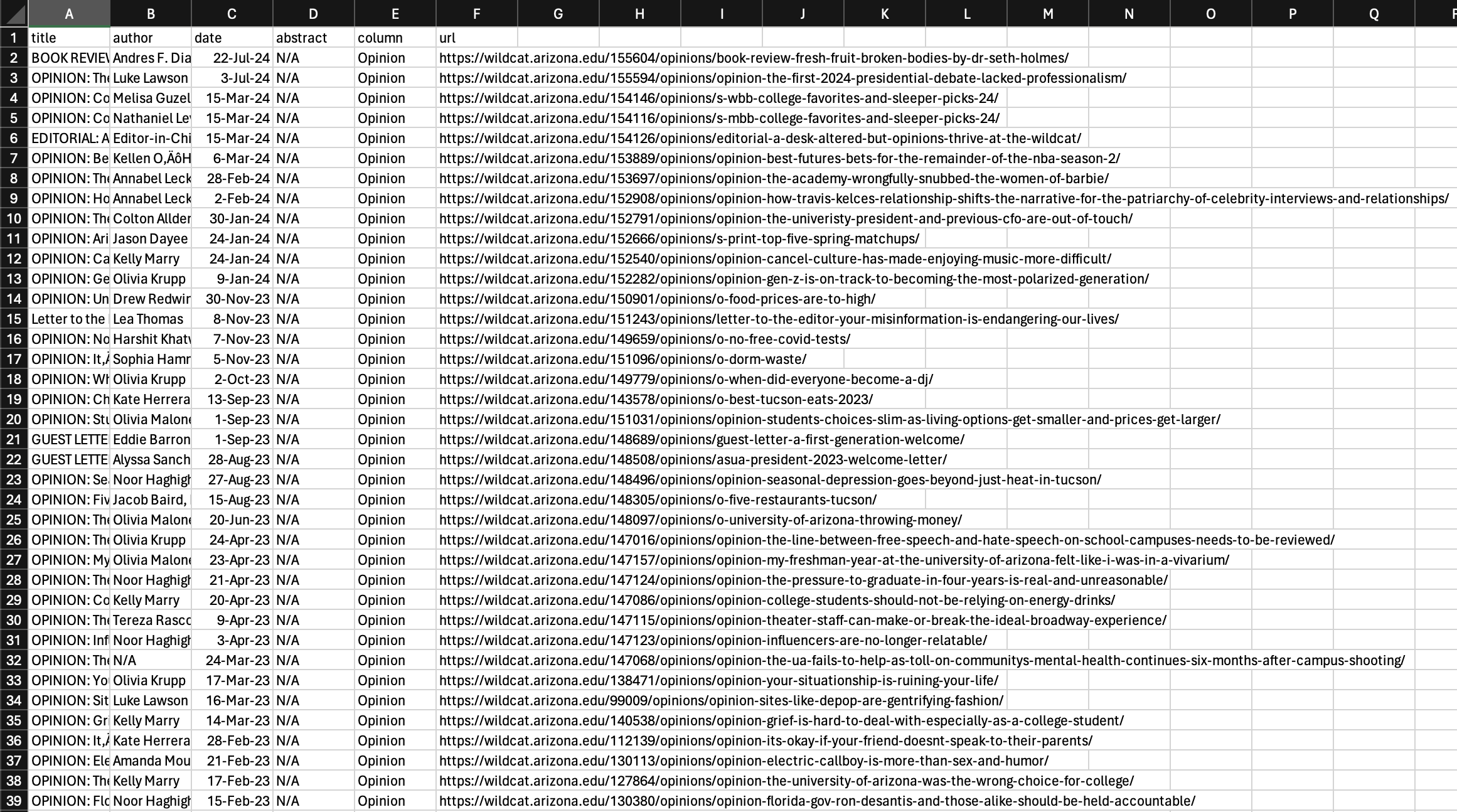

Where is this data coming from?

print(wildcat)

                                                 title            author  \
0    BOOK REVIEW: ‘Fresh Fruit, Broken Bodies’ by D...    Andres F. Diaz
1    OPINION: The first presidential debate lacked ...       Luke Lawson
2    OPINION: College WBB favorites and sleeper pic...  Melisa Guzeloglu
3    OPINION: College MBB favorites and sleeper pic...   Nathaniel Levin
4    EDITORIAL: A desk altered but opinions thrive ...   Editor-in-Chief
..                                                 ...               ...
995                      Here’s how to best help Nepal    Hailey Dickson
996                        Adderall abuse not harmless    Maddie Pickens
997                     Court rule is legitimate judge   Jacob Winkelman
998                 Letters to the editor: May 4, 2015  Gabriel Schivone
999            Capability imperfectly captured by TCEs    Maddie Pickens

               date  abstract   column  \
0     July 22, 2024       NaN  Opinion
1      July 3, 2024       NaN  Opinion
2    March 15, 2024       NaN  Opinion
3    March 15, 2024       NaN  Opinion
4    March 15, 2024       NaN  Opinion
..              ...       ...      ...
995     May 5, 2015       NaN  Opinion
996     May 5, 2015       NaN  Opinion
997     May 4, 2015       NaN  Opinion
998     May 4, 2015       NaN  Opinion
999     May 4, 2015       NaN  Opinion

                                                   url  \
0    https://wildcat.arizona.edu/155604/opinions/bo...
1    https://wildcat.arizona.edu/155594/opinions/op...
2    https://wildcat.arizona.edu/154146/opinions/s-...
3    https://wildcat.arizona.edu/154116/opinions/s-...
4    https://wildcat.arizona.edu/154126/opinions/ed...
..                                                 ...
995  https://wildcat.arizona.edu/123054/opinions/he...
996  https://wildcat.arizona.edu/102511/opinions/ad...
997  https://wildcat.arizona.edu/127949/opinions/co...
998  https://wildcat.arizona.edu/142548/opinions/le...
999  https://wildcat.arizona.edu/100073/opinions/ca...

                                                tokens  sentiment
0    [book, review, fresh, fruit, broken, bodies, s...        0.0
1    [opinion, first, presidential, debate, lacked,...        0.0
2    [opinion, college, wbb, favorites, sleeper, pi...       -1.0
3    [opinion, college, mbb, favorites, sleeper, pi...       -1.0
4    [editorial, desk, altered, opinions, thrive, w...        0.0
..                                                 ...        ...
995                                [best, help, nepal]        5.0
996                        [adderall, abuse, harmless]       -3.0
997                   [court, rule, legitimate, judge]        0.0
998                             [letters, editor, may]        0.0
999          [capability, imperfectly, captured, tces]        1.0

[1000 rows x 8 columns]

Web scraping

Scraping the web: what? why?

Increasing amount of data is available on the web
These data are provided in an unstructured format: you can always copy&paste, but it’s time-consuming and prone to errors
Web scraping is the process of extracting this information automatically and transform it into a structured dataset
Two different scenarios:
- Screen scraping: extract data from source code of website, with html parser (easy) or regular expression matching (less easy).
- Web APIs (application programming interface): website offers a set of structured http requests that return JSON or XML files.

Hypertext Markup Language

Most of the data on the web is still largely available as HTML - while it is structured (hierarchical) it often is not available in a form useful for analysis (flat / tidy).

<html>
  <head>
    <title>This is a title</title>
  </head>
  <body>
    <p align="center">Hello world!</p>
    <br/>
    <div class="name" id="first">John</div>
    <div class="name" id="last">Doe</div>
    <div class="contact">
      <div class="home">555-555-1234</div>
      <div class="home">555-555-2345</div>
      <div class="work">555-555-9999</div>
      <div class="fax">555-555-8888</div>
    </div>
  </body>
</html>

BeautifulSoup

The BeautifulSoup package makes basic processing and manipulation of HTML data straight forward
beautiful-soup-4.readthedocs.io

from bs4 import BeautifulSoup

BeautifulSoup

Core functions:

requests.get(url) - send an HTTP GET request to a URL
BeautifulSoup(html, 'html.parser') - parse HTML data from a string
soup.select('selector') - select specified elements from the HTML document using CSS selectors
element.get_text() - extract text content from an element
element['attribute'] - extract attribute value from an element

HTML, BeautifulSoup, & requests

html = '''
<html>
  <head>
    <title>This is a title</title>
  </head>
  <body>
    <p align="center">Hello world!</p>
    <br/>
    <div class="name" id="first">John</div>
    <div class="name" id="last">Doe</div>
    <div class="contact">
      <div class="home">555-555-1234</div>
      <div class="home">555-555-2345</div>
      <div class="work">555-555-9999</div>
      <div class="fax">555-555-8888</div>
    </div>
  </body>
</html>
'''

soup = BeautifulSoup(html, 'html.parser')

Selecting elements

p_elements = soup.select('p')
print(p_elements)

[<p align="center">Hello world!</p>]

p_text = [p.get_text() for p in p_elements]
print(p_text)

['Hello world!']

p_names = [p.name for p in p_elements]
print(p_names)

['p']

p_attrs = [p.attrs for p in p_elements]
print(p_attrs)

[{'align': 'center'}]

p_align = [p['align'] for p in p_elements if 'align' in p.attrs]
print(p_align)

['center']

More selecting tags

div_elements = soup.select('div')
print(div_elements)

[<div class="name" id="first">John</div>, <div class="name" id="last">Doe</div>, <div class="contact">
<div class="home">555-555-1234</div>
<div class="home">555-555-2345</div>
<div class="work">555-555-9999</div>
<div class="fax">555-555-8888</div>
</div>, <div class="home">555-555-1234</div>, <div class="home">555-555-2345</div>, <div class="work">555-555-9999</div>, <div class="fax">555-555-8888</div>]

div_text = [div.get_text() for div in div_elements]
print(div_text)

['John', 'Doe', '\n555-555-1234\n555-555-2345\n555-555-9999\n555-555-8888\n', '555-555-1234', '555-555-2345', '555-555-9999', '555-555-8888']

CSS selectors

We will use a tool called SelectorGadget to help us identify the HTML elements of interest by constructing a CSS selector which can be used to subset the HTML document.
Some examples of basic selector syntax is below,

Selector	Example	Description
.class	`.title`	Select all elements with class=“title”
#id	`#name`	Select all elements with id=“name”
element	`p`	Select all <p> elements
element element	`div p`	Select all <p> elements inside a <div> element
element>element	`div > p`	Select all <p> elements with <div> as a parent
[attribute]	`[class]`	Select all elements with a class attribute
[attribute=value]	`[class=title]`	Select all elements with class=“title”

CSS classes and ids

name_elements = soup.select('.name')
print(name_elements)

[<div class="name" id="first">John</div>, <div class="name" id="last">Doe</div>]

first_name = soup.select('#first')
print(first_name)

[<div class="name" id="first">John</div>]

Text with `get_text()`

html = '''
<p>
  This is the first sentence in the paragraph.
  This is the second sentence that should be on the same line as the first sentence.<br>This third sentence should start on a new line.
</p>
'''

soup = BeautifulSoup(html, 'html.parser')
text = soup.get_text()
print(text)



  This is the first sentence in the paragraph.
  This is the second sentence that should be on the same line as the first sentence.This third sentence should start on a new line.

HTML tables with `read_html()`

html_table = '''
<html>
  <head>
    <title>This is a title</title>
  </head>
  <body>
    <table>
      <tr> <th>a</th> <th>b</th> <th>c</th> </tr>
      <tr> <td>1</td> <td>2</td> <td>3</td> </tr>
      <tr> <td>2</td> <td>3</td> <td>4</td> </tr>
      <tr> <td>3</td> <td>4</td> <td>5</td> </tr>
    </table>
  </body>
</html>
'''

soup = BeautifulSoup(html_table, 'html.parser')
table = pd.read_html(str(soup.select('table')[0]))[0]
print(table)

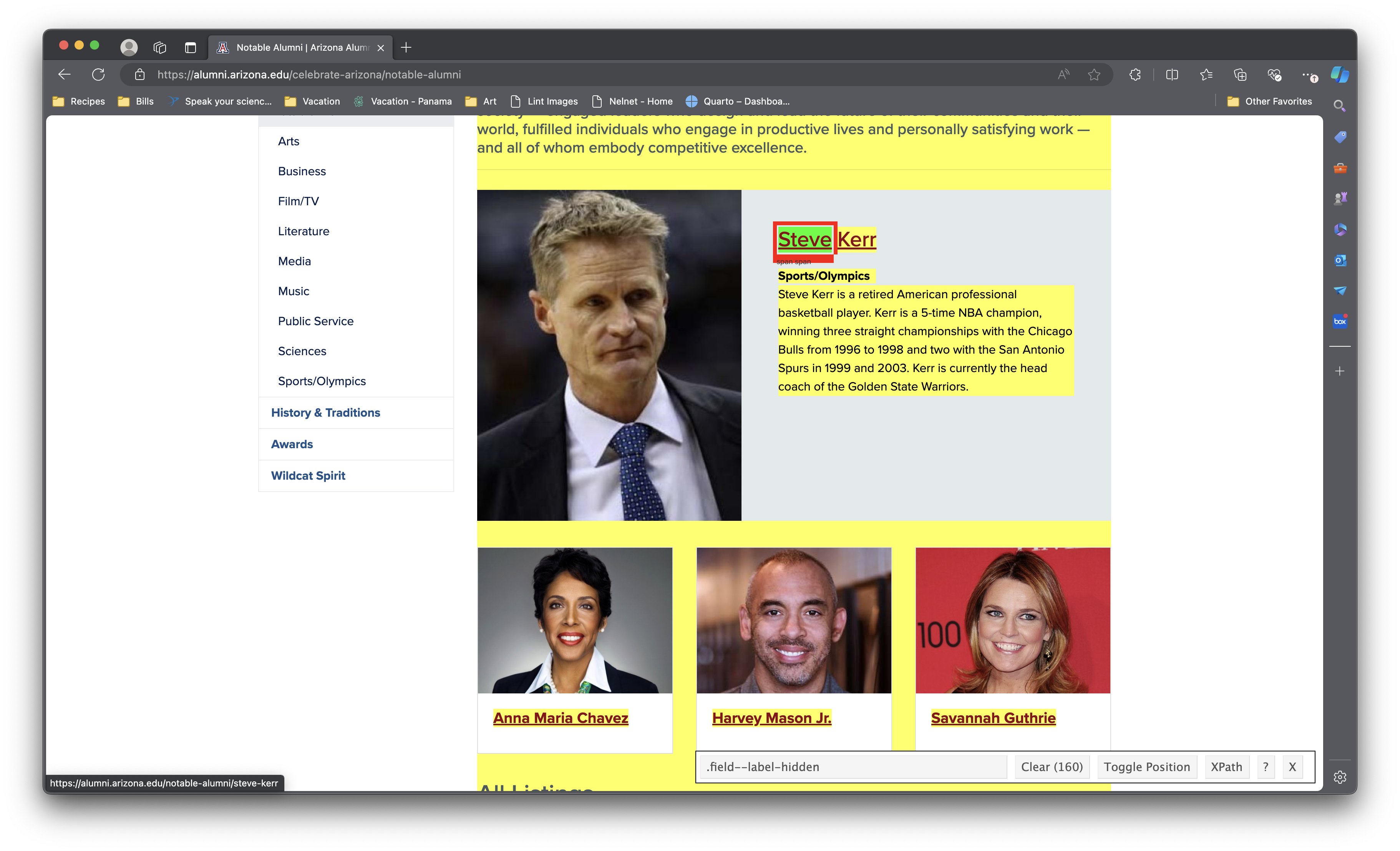

SelectorGadget

SelectorGadget (selectorgadget.com) is a javascript based tool that helps you interactively build an appropriate CSS selector for the content you are interested in.

Application exercise

Opinion articles in The Arizona Daily Wildcat

Go to https://wildcat.arizona.edu/category/opinions/.

How many articles are on the page?

Goal

Scrape data and organize it in a tabular format in Python
Perform light text parsing to clean data
Summarize and visualze the data

`ae-06`

Open a new window in VS Code (File > New Window) and open the project called ae.
If there are any uncommitted files, commit them, and then click Pull.
Open the file called wildcat-scrape.py and follow along.

Recap

Use the SelectorGadget identify tags for elements you want to grab
Use BeautifulSoup to first read the whole page (into Python) and then parse the object you’ve read in to the elements you’re interested in
Put the components together in a data frame and analyze it like you analyze any other data

A new Python workflow

When working in a Jupyter notebook, your analysis is re-run each time you execute the notebook
If web scraping in a notebook, you’d be re-scraping the data each time you run the notebook, which is undesirable (and not nice)!
An alternative workflow:
- Use a Python script to save your code
- Saving interim data scraped using the code in the script as CSV or pickle files
- Use the saved data in your analysis in your notebook

Web scraping considerations

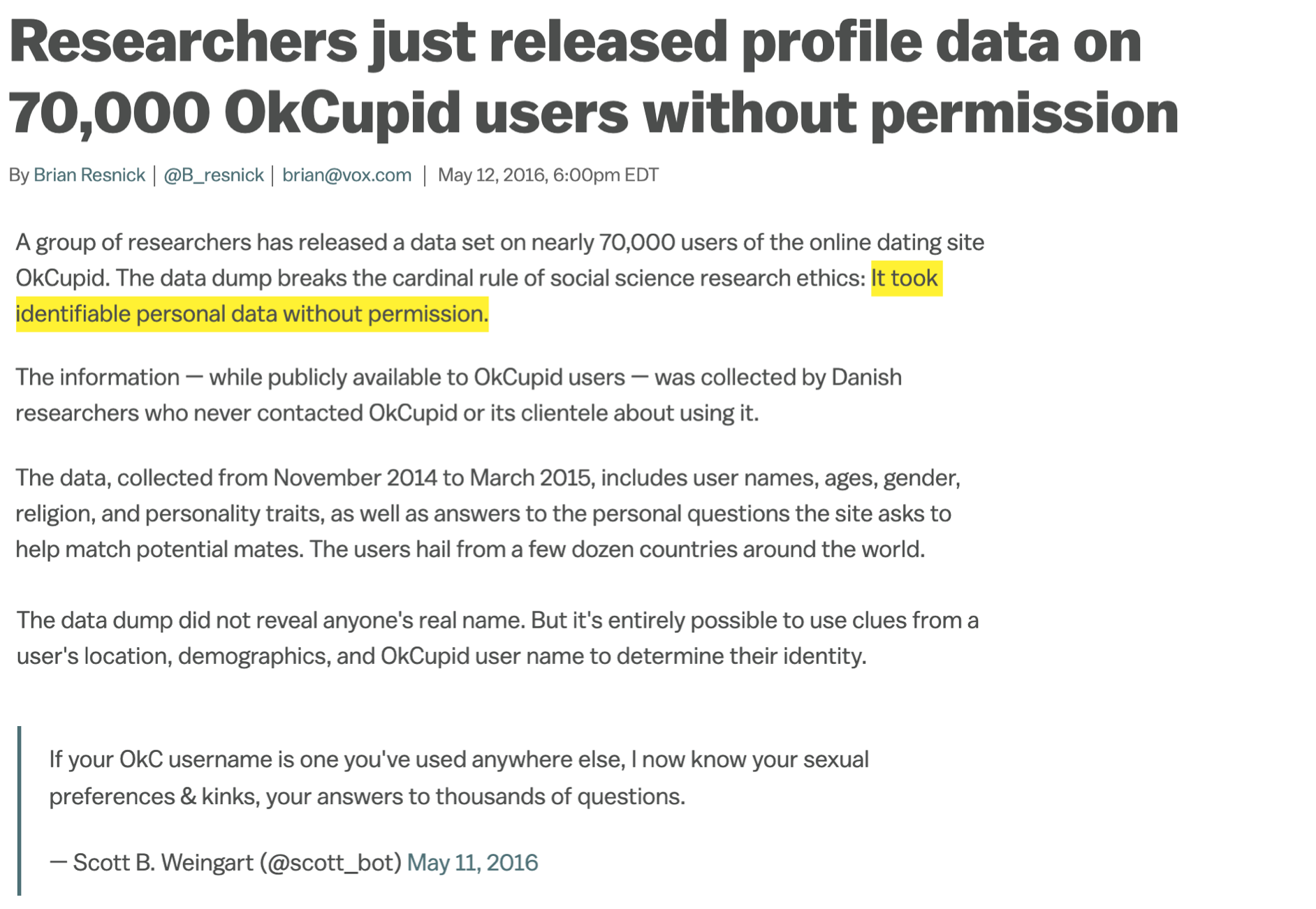

Ethics: “Can you?” vs “Should you?”

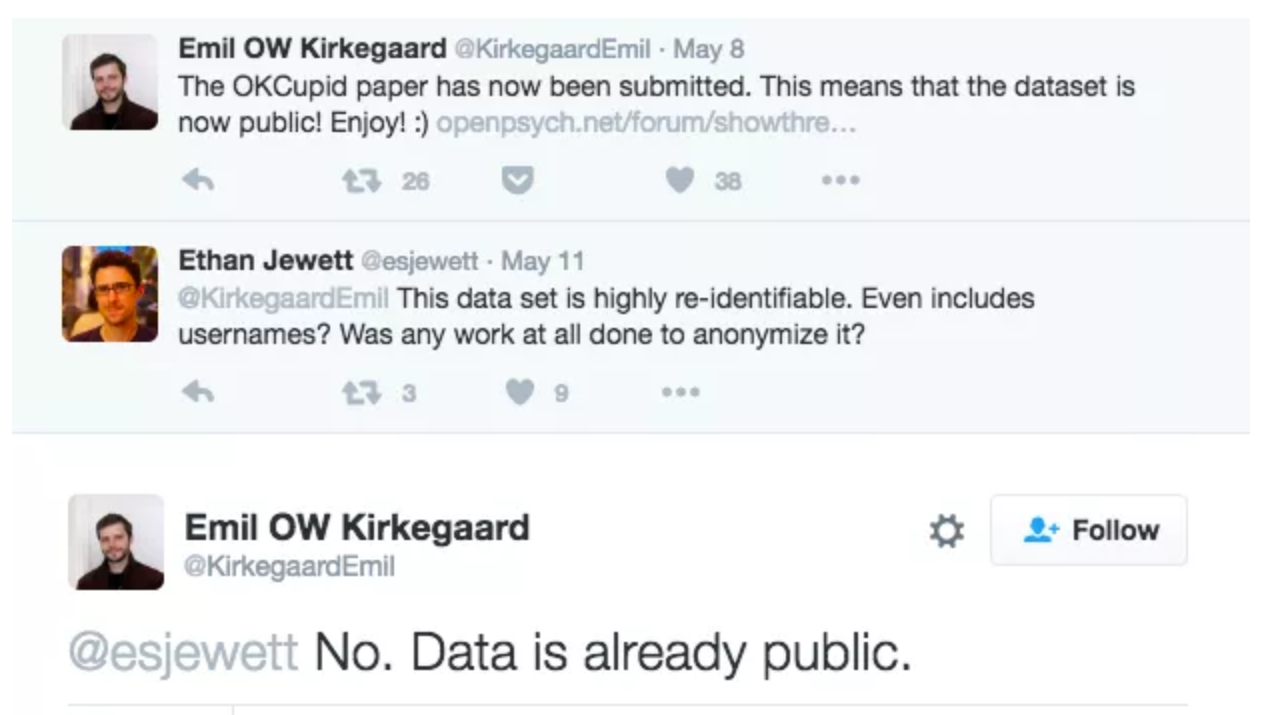

“Can you?” vs “Should you?”

Challenges: Unreliable formatting

Challenges: Data broken into many pages

Workflow: Screen scraping vs. APIs

Two different scenarios for web scraping:

Screen scraping: extract data from source code of website, with html parser (easy) or regular expression matching (less easy)
Web APIs (application programming interface): website offers a set of structured http requests that return JSON or XML files

Web scraping

Setup

Before continuing…

Reading The Arizona Daily Wildcat

Reading The Arizona Daily Wildcat

Analyzing The Arizona Daily Wildcat

Analyzing The Arizona Daily Wildcat

All of this analysis is done in Python!

Common works in The Arizona Daily Wildcat titles

Avg sentiment scores of titles

Where is this data coming from?

Where is this data coming from?

Web scraping

Scraping the web: what? why?

Hypertext Markup Language

BeautifulSoup

BeautifulSoup

HTML, BeautifulSoup, & requests

Selecting elements

More selecting tags

CSS selectors

CSS classes and ids

Text with get_text()

HTML tables with read_html()

SelectorGadget

Application exercise

Opinion articles in The Arizona Daily Wildcat

Goal

ae-06

Recap

A new Python workflow

Web scraping considerations

Ethics: “Can you?” vs “Should you?”

“Can you?” vs “Should you?”

Challenges: Unreliable formatting

Challenges: Data broken into many pages

Workflow: Screen scraping vs. APIs

Text with `get_text()`

HTML tables with `read_html()`

`ae-06`
